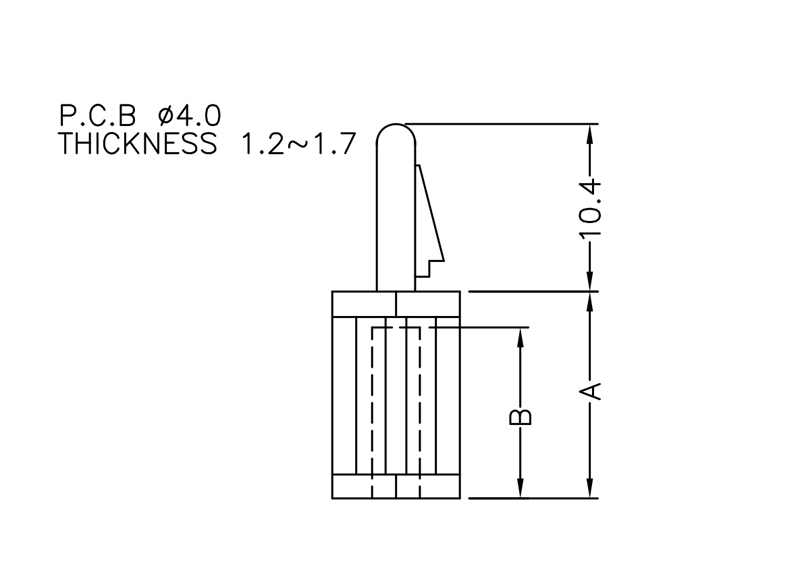

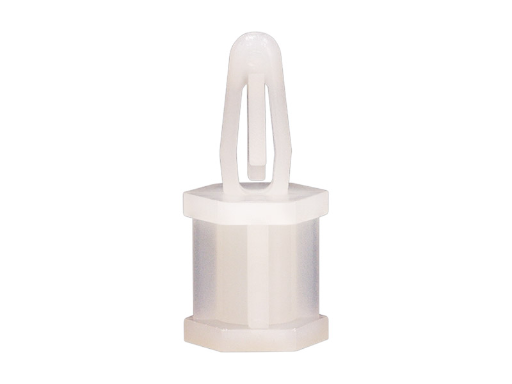

Snap lock hexagonal self tapping spacer with a pilot hole of 2.9 mm and a bayonet snap lock for a 4 mm mounting hole. Spacer length is 28.6 mm.
BS-28
Snap-in & Internal Thread
Nylon 66
94V-2, 94V-0
Black, Natural
| Part no. | Material | Color | A Length | B Thread Depth | Package |
|---|---|---|---|---|---|
| BS-6 | Nylon 66 | Black | 6.4 | 4.8 | 1000 |
| BS-9 | Nylon 66 | Black | 9.5 | 8 | 1000 |
| BS-12 | Nylon 66 | Black | 12.7 | 11 | 1000 |
| BS-14 | Nylon 66 | Black | 14 | 12.7 | 1000 |
| BS-15 | Nylon 66 | Black | 15.9 | 13 | 1000 |
| BS-19 | Nylon 66 | Black | 19.1 | 16.2 | 1000 |
| BS-22 | Nylon 66 | Black | 22.2 | 19.4 | 1000 |
| BS-25 | Nylon 66 | Black | 25.4 | 24 | 1000 |
| BS-28 | Nylon 66 | Black | 28.6 | 25.9 | 1000 |
| BS-29 | Nylon 66 | Black | 20 | 25.9 | 1000 |
