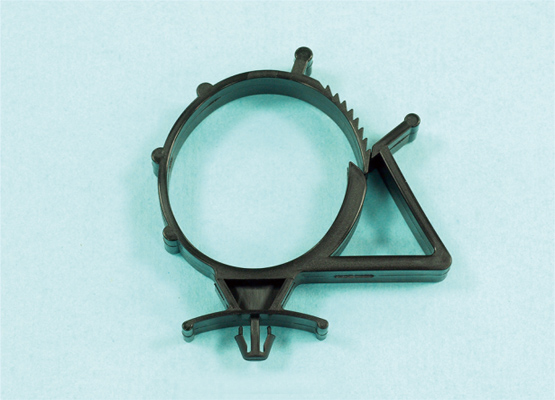

Cable Clamp

Cable Clamp Adjustable (T8 LED Lamp) Elevated Lock Snap Lock

Part no.

AWD-1

Type

Cable Clamp Adjustable

Material

PC

Flammability class

94V-2 / 94V-0

Color

BLACK,NATURAL

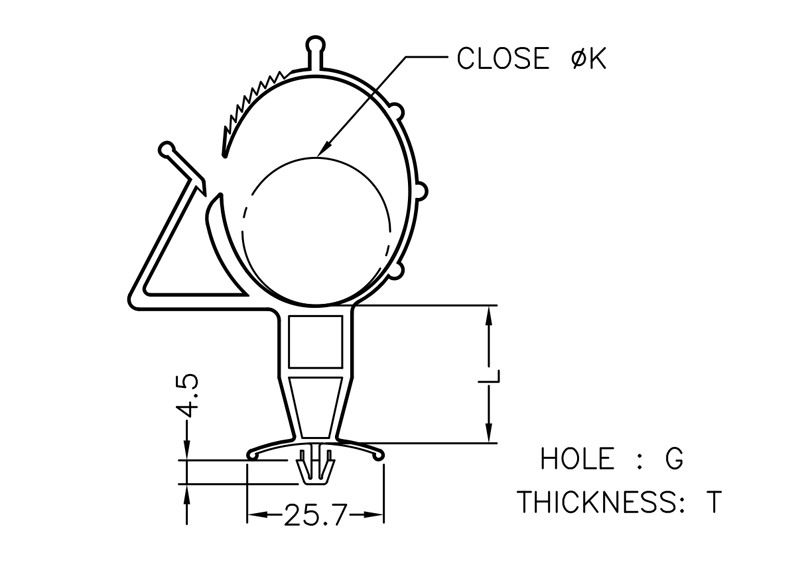

Download 2D product drawing (PDF)

Download

Download 3D product drawing (CAD)

Please contact us

Part no.	Material	Color	A max. C	B min. PHD	C max. PHD	D min. PT	E max. PT	Package
AWD-2	PC	BLACK,NATURAL	33.8	5.5	5.5	1	1.2	100
AWD-1	PC	BLACK,NATURAL	33.8	5.5	5.5	1	1.2	50
