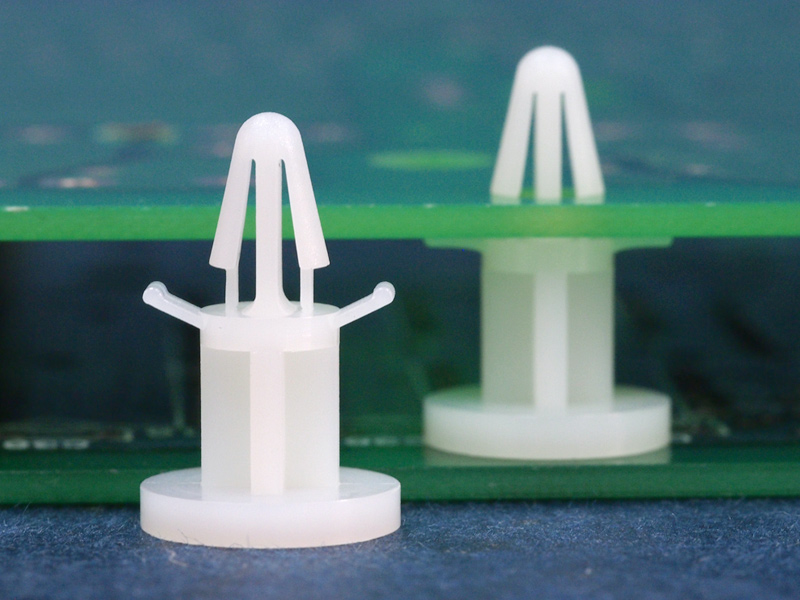

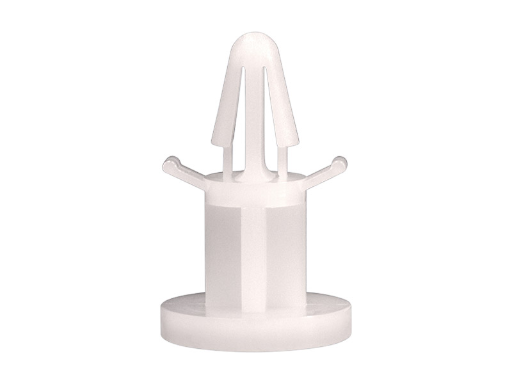

Arrowhead push spacer rest support provided with tension wing for 4 mm chassis. Spacer length is 9.5 mm.
MBS-9.5L
Flat Rest PCB Support
Nylon 66
94V-2, 94V-0
Black, Natural

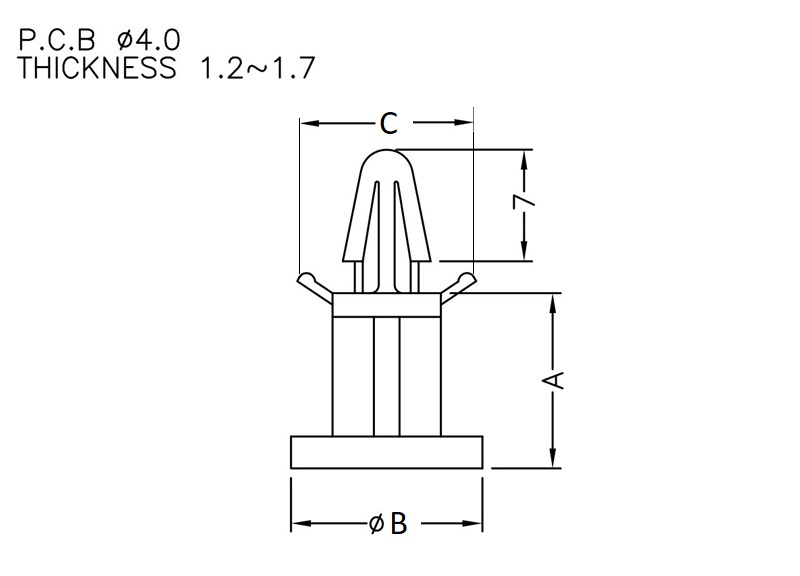

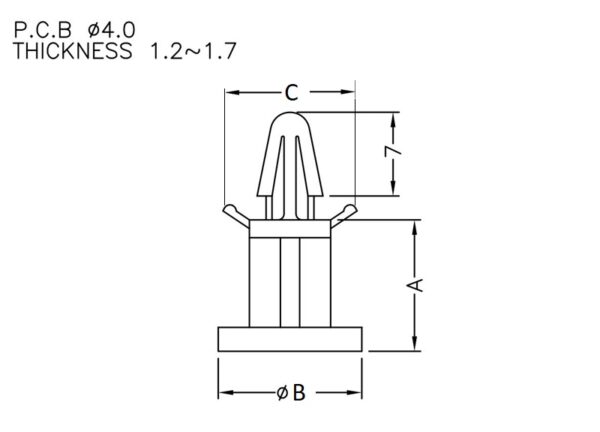

| Part no. | Material | Color | A Length | B Shoulder Width | C Span Width Wings | Package |
|---|---|---|---|---|---|---|
| MBS-6 | Nylon 66 | Black | 6.4 | 11.8 | 11.4 | 1000 |
| MBS-8 | Nylon 66 | Black | 8 | 11.8 | 11.4 | 1000 |
| MBS-10 | Nylon 66 | Black | 10 | 12 | 11.4 | 1000 |
| MBS-11 | Nylon 66 | Black | 11 | 12 | 11.4 | 500 |
| MBS-14 | Nylon 66 | Black | 14 | 12 | 11.4 | 500 |
| MBS-74 | Nylon 66 | Black | 74 | 11.3 | 10.4 | 250 |
| MBS-8.9 | Nylon 66 | Black | 8.9 | 11.9 | 11.1 | 1000 |
| MBS-8.9S | Nylon 66 | Black | 8.9 | 8 | 11.1 | 1000 |
| MBS-9.5L | Nylon 66 | Black | 9.5 | 20 | 11.4 | 1000 |
