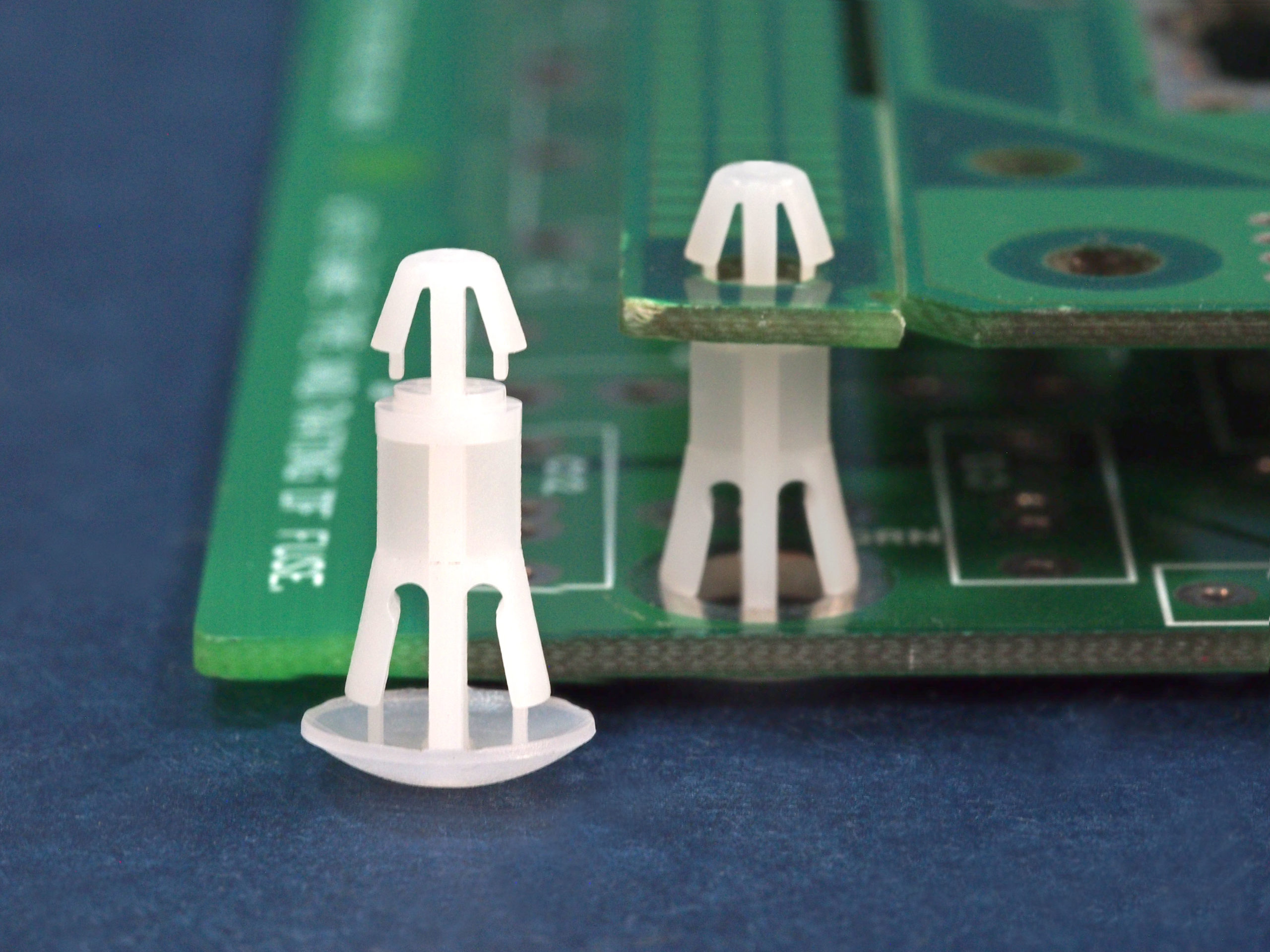

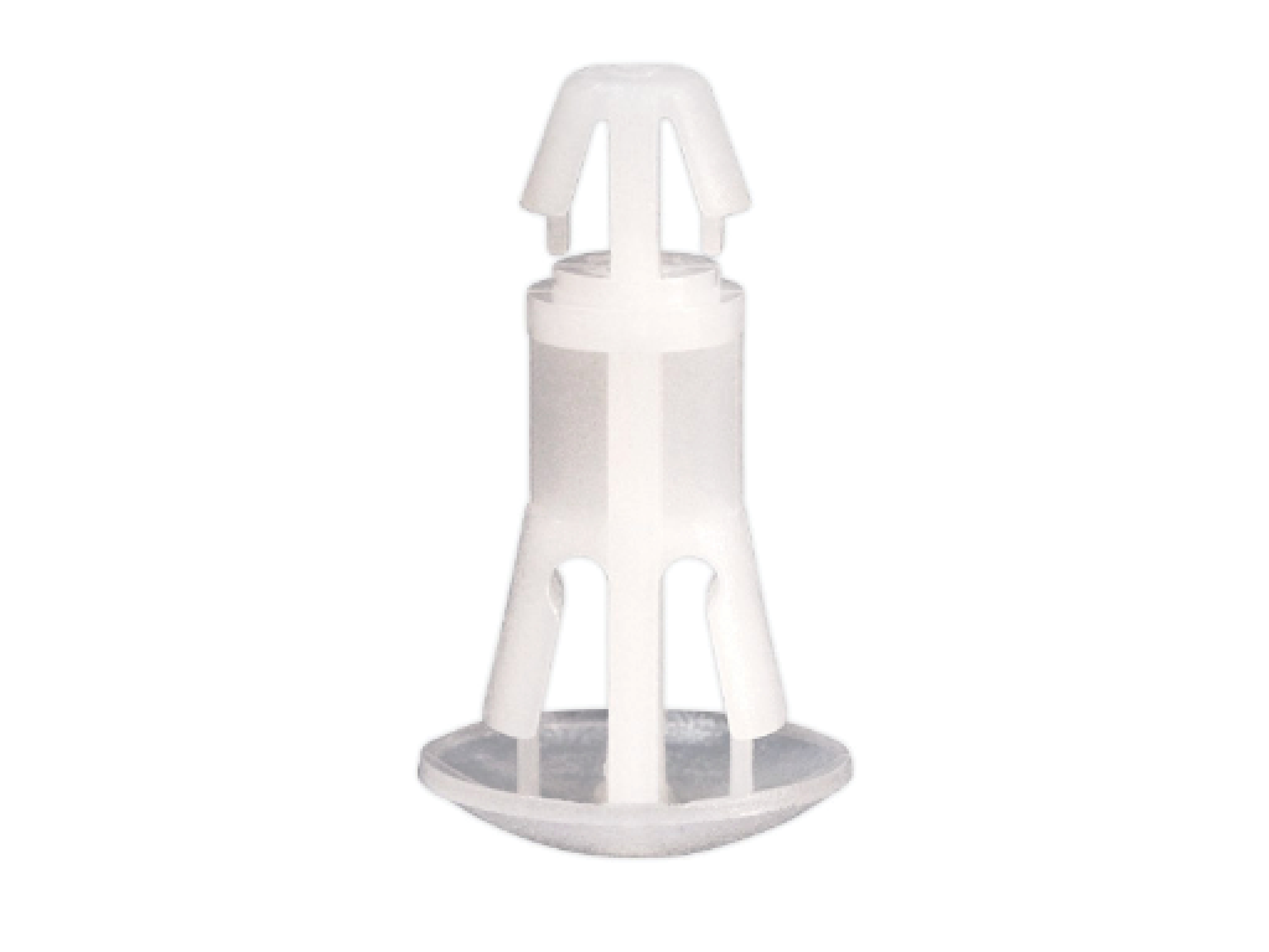

Reverse mount PCB spacer. Cupped design minimizes dust ingress and protrusion on chassis bottom. Arrowhead fits panel hole of 4 mm. Snap in fixation for chassis hole diameter of 5.5 mm. Spacer length 8.5 mm.
RCM-8.5
Reversed Mount
Nylon 66
94V-2, 94V-0
Black, Natural

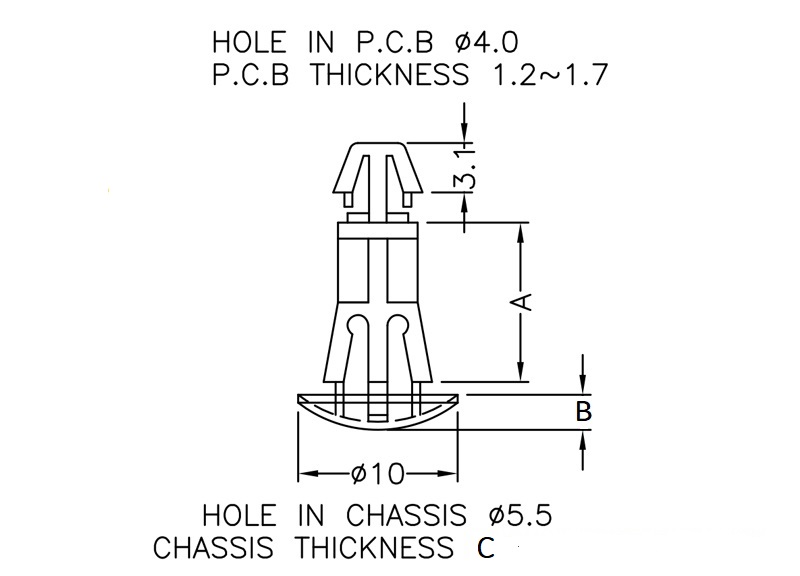

| Part no. | Material | Color | A Length | B B | C Chassis THK | Package |
|---|---|---|---|---|---|---|
| RCM-3 | Nylon 66 | Black | 3.5 | 2.2 | 0.8~1.6 | 1000 |
| RCM-5 | Nylon 66 | Black | 5 | 2.2 | 0.8~1.6 | 1000 |
| RCM-5SP | Nylon 66 | Black | 5 | 1.5 | 0.8~1.6 | 1000 |
| RCM-6 | Nylon 66 | Black | 6.35 | 2.2 | 0.8~1.6 | 1000 |
| RCM-6L | Nylon 66 | Black | 6.35 | 2.2 | 1.6~2.0 | 1000 |
| RCM-7 | Nylon 66 | Black | 7 | 2.2 | 0.8~1.6 | 1000 |
| RCM-8 | Nylon 66 | Black | 8 | 2.2 | 0.8~1.6 | 1000 |
| RCM-8.5 | Nylon 66 | Black | 8.5 | 2.2 | 0.8~1.6 | 1000 |
| RCM-10 | Nylon 66 | Black | 10 | 2.2 | 0.8~1.6 | 1000 |
| RCM-12A | Nylon 66 | Black | 12 | 2.2 | 0.8~1.6 | 1000 |
